Warning

• Please use an external charger for power supply, with a voltage of 5V.
• The POWER LED cable of this device must be connected to the POWER LED cable of the motherboard to detect the power on/off status.
• Do not use the USB power supply from the host, as it may cause incorrect recognition of the power on/off status.

Why Use Type-C Power Supply?

This method is used when small motherboards lack PCI-E slots or when all PCI-E slots on the motherboard are occupied. Under normal circumstances, this method is not recommended.

Using Motherboard 24PIN Power Supply

Warning

• Be sure to operate while the power is off.
• Be sure to use a multimeter to measure accurately.

Tips

No technical support is provided for this connection method.

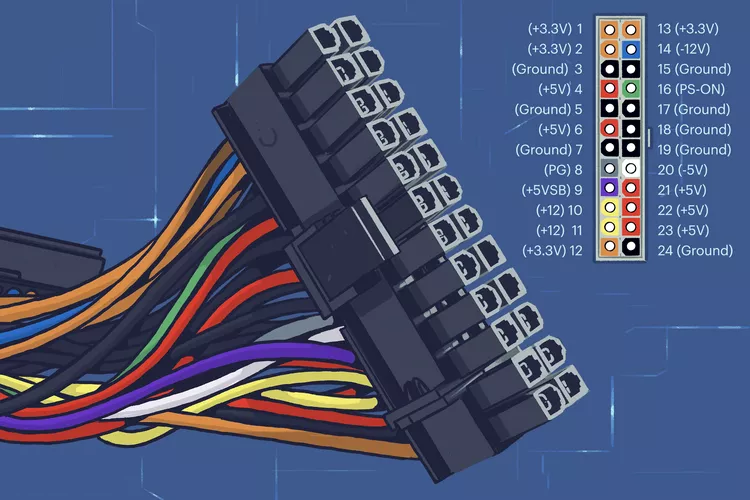

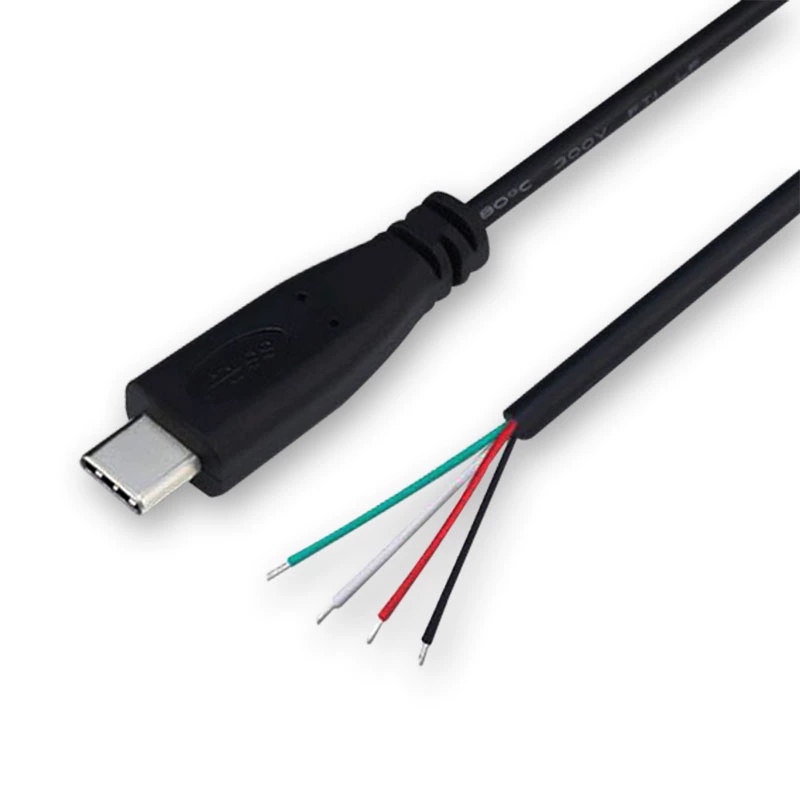

When the power is off, use a multimeter to measure the voltage of the 24-pin connector. This device requires a 5V input. Connect the 5V voltage and Ground to this device using a Type-C adapter cable.

Connecting to Motherboard Jumpers

For detailed connection instructions, please refer to the Motherboard Jumper Connection guide.

Connecting to Chassis Jumpers

For detailed connection instructions, please refer to the Chassis Jumper Connection guide.
