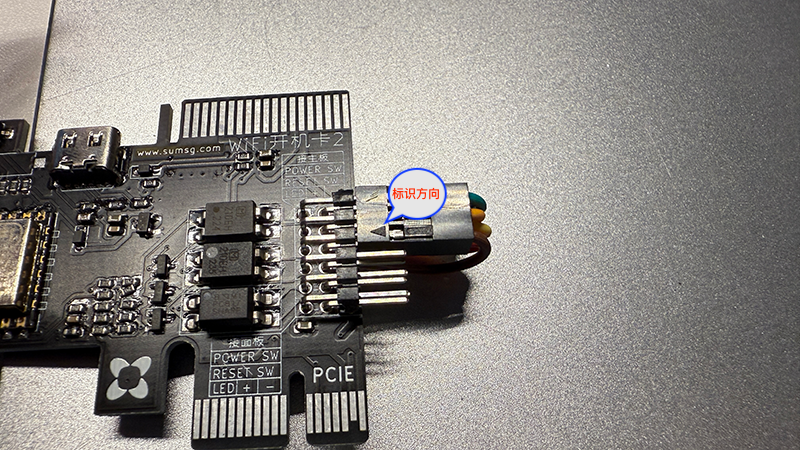

Use the included jumper cables to connect to the motherboard.

Understanding the Jumpers

Please check the printed motherboard manual included with your device or the electronic version on the official website to locate the sections labeled POWER SW , RESET SW , and POWER LED .

Illustration	Label	Function	Notes
	POWER SW	Power on/off	None
	RESET SW	Restart	None
	POWER LED (+-)	Power indicator	*Polarity sensitive

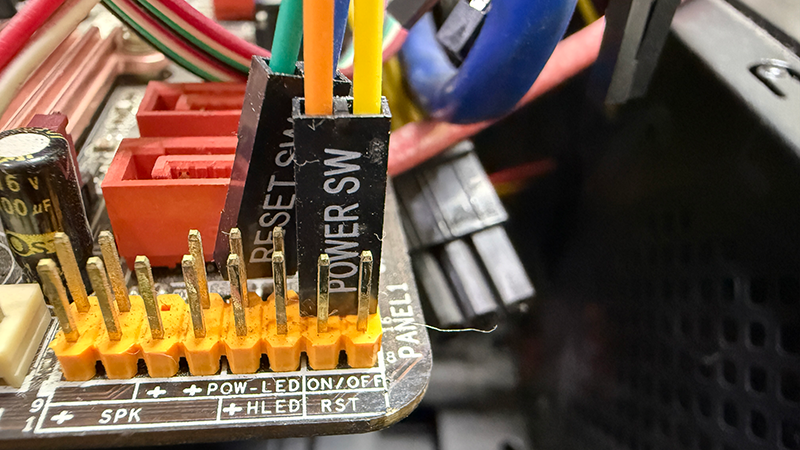

Connecting the Power Button to the Motherboard

Connect the power function cable of this device to the motherboard's power jumper pins.

• Locate the POWER SW jumper connecting the case to the motherboard and remove the case jumper.
• Use the included POWER SW jumper from this device and plug it into the corresponding position on the motherboard. This jumper is not polarity-sensitive.

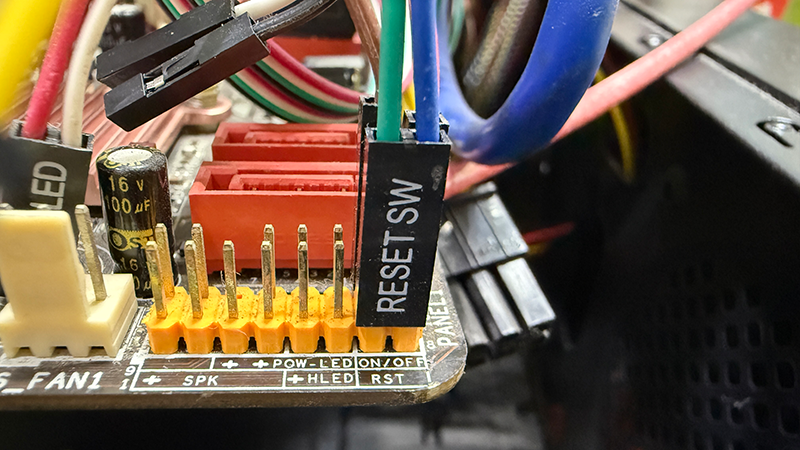

Connecting the Reset Button to the Motherboard

Connect the reset function cable of this device to the motherboard's reset jumper pins.

• Locate the RESET SW jumper connecting the case to the motherboard and remove the case jumper.
• Use the included RESET SW jumper from this device and plug it into the corresponding position on the motherboard. This jumper is not polarity-sensitive.

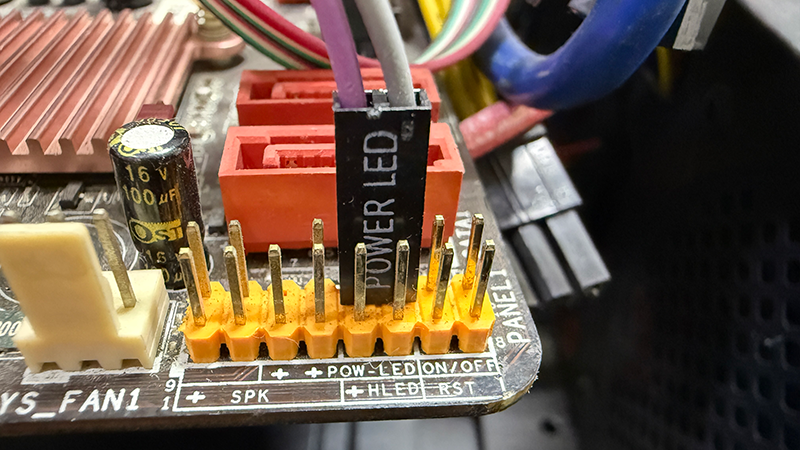

Connecting the Power LED to the Motherboard

Warning

• Do not connect this jumper if you are not using an external Type-C power supply!
• This jumper is polarity-sensitive. If the power status is not detected, swap the two wires and reconnect them to the motherboard.

• Locate the POWER LED jumper connecting the case to the motherboard and remove the case jumper.
• Use the included POWER LED jumper from this device and plug it into the POWER LED position on the motherboard. This jumper is polarity-sensitive.

For versions with a switch, ensure the switch is set to the LED side.
